Design Norm: DIN 22858 / ANSI B73.3
Outlet Connection: DN25-125 mm
Capacity Up to 300 m3/hour
Pressing Height: 110 m
Temperature -60 ºC / +180 ºC
Pressure PN16
Application: chemical and petrochemical processes, pharmaceutical industry and chlorine electrolysis processes.
Impeller Design: Closed / Semi-Open Impeller
Sealing Mechanical seal (single or double)
Body Design: Cast iron outside, 3-5 mm thick non-replaceable PFA lining

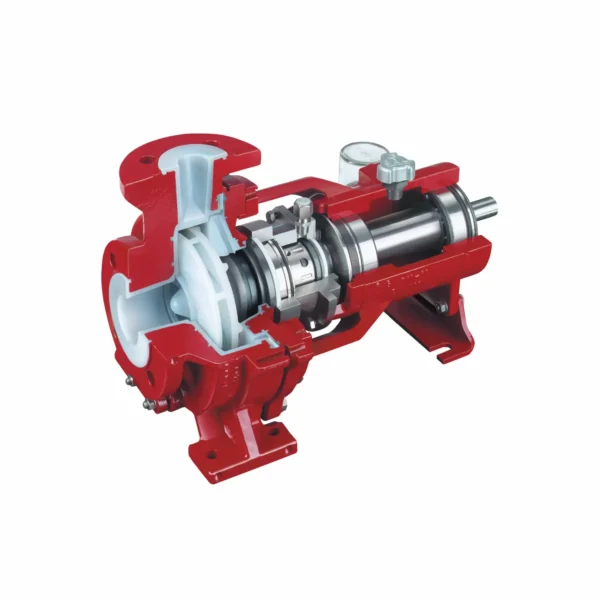

Pump Type: Centrifugal Type Plastic Pump in Process Design
Mounting Types: Horizontal Type
Materials: Housing GGG40.3 ductile cast iron, inner lining material PFA/PTFE, PE-UHMW, PFA-P
Option/Feature: Coupled compact design, Thermosyphon system for mechanical ventilation, Heating jacket, Vortex impeller (gas permeability up to 5%, particle permeability up to 50%, protection against cavitation)
