Capacity: Up to 1,600 m3/h
Head: 200 m LC (maximum)
Temperature: -50°C to +250°C
Pressure: PN 40 (maximum) (Std. PN 16)
Immersion Depth: 10,000 mm (maximum)
Application: Chemical, Petrochemical, Cooling & Heat Transfer, Energy, Coke Plant

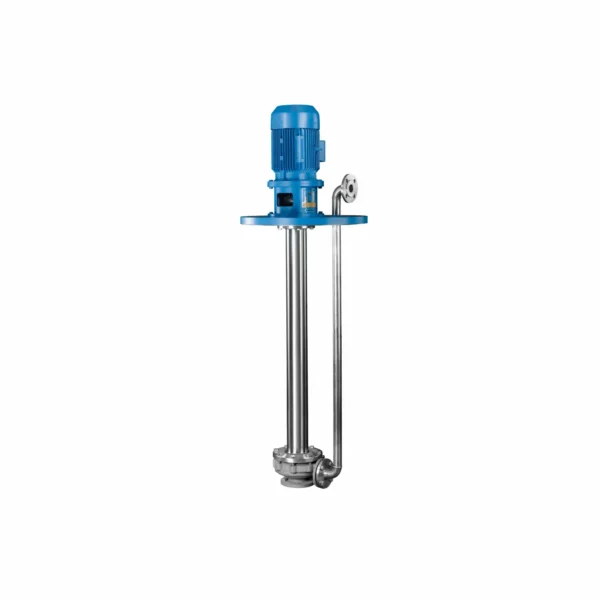

Pump Type: Single Stage Mechanical Seal Submersible Centrifugal Pump
Installation Types: Vertical Type
Pump Body: 1.4408 or 1.0619
Impeller: 1.4408
Shaft: 1.4571
Shaft Coating: 1.4571
Inboard Bearing: Silicon Carbide
Bearing Housing: 1.0038
Shaft Seal: According to product and customer specifications
Additional Information: DIN EN ISO 2858 / 5199 Design according to API 610 is available upon request.
