Dimensions: DN 250 – 700 mm (cast) / DN 250 – 1400 mm (welded)
Capacity: Up to 8300 l/sec
Delivery Head: 10 m
Temperature: 140°C (max)
Pressure: 6 bar
Application: Crystallization Plants, Evaporation Plants, Reactor Loops, Sludge Recirculation, Pump Stations
Impeller Design: 3 or 4 blade design is available depending on the delivery head.
Body Design: Specially designed body design to circulate without damaging the product.

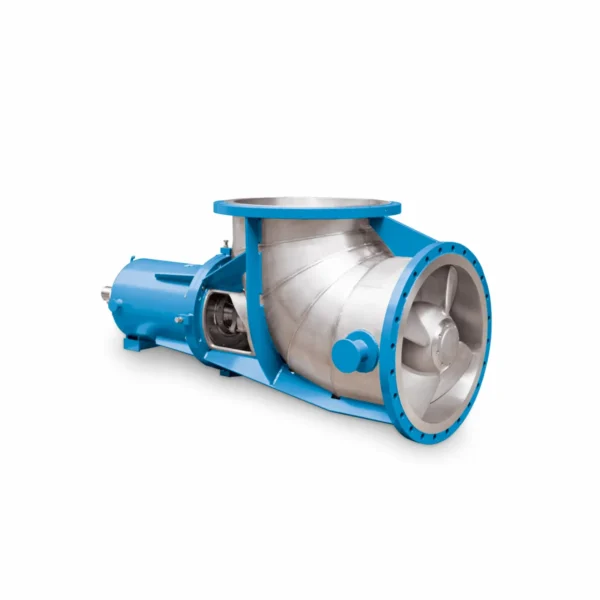

Pump Type: Axial Flow Circulation Pump
Mounting Types: Horizontal Type
Materials: GG25, GGG40, 1.4409, 1.4588, 1.4593, HG25.3, HG15.3 Titanium, Hastelloy-B – C, Duplex – Super Duplex, Zirconium, Nickel, Monel on Request
